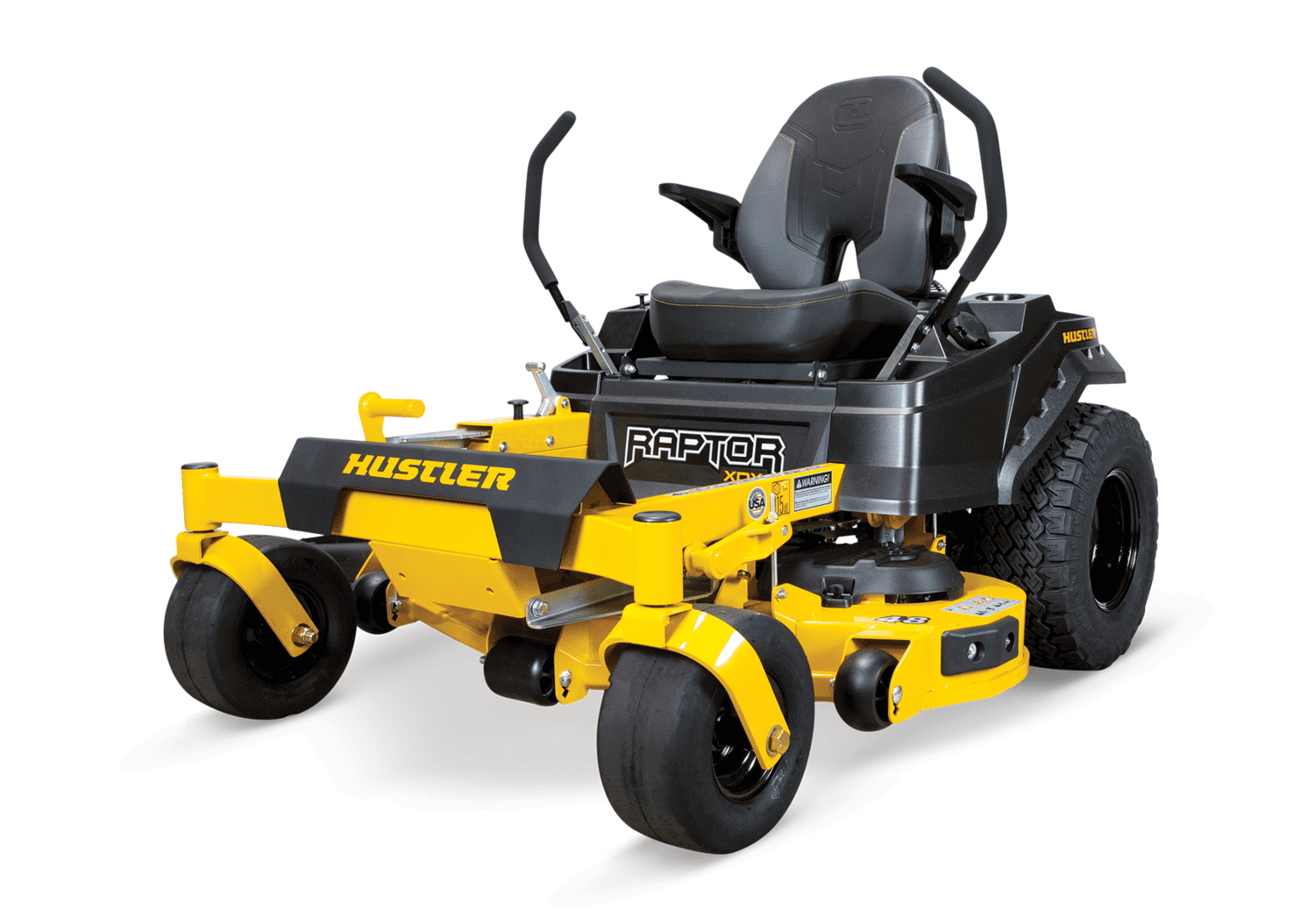

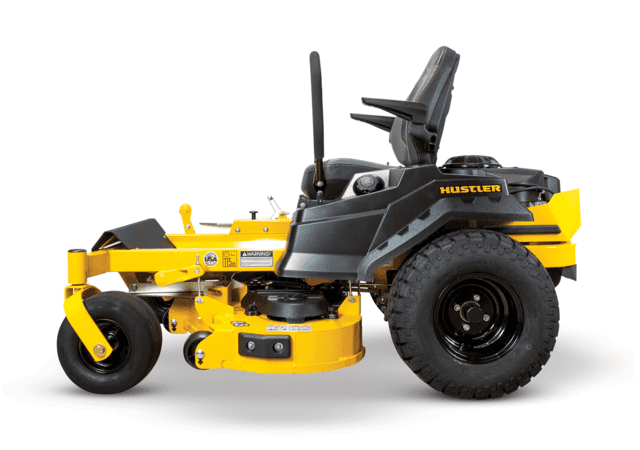

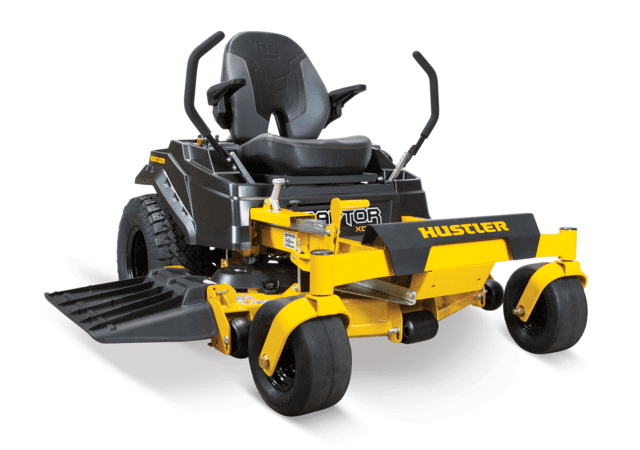

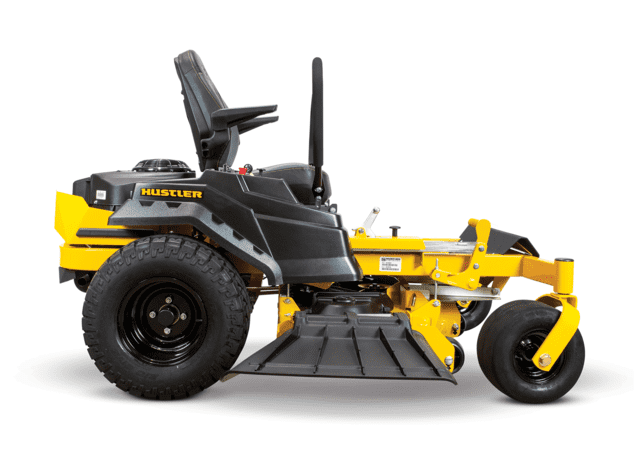

Hustler Raptor XDX 60" (Model 941518) $14699.00
Built to mow commercially, or maybe just to be used by the savvy land owner, the Raptor XDX is more than capable no matter your intended use. As comfortable being used by the astute acreage owner or the lawn mowing contractor, the Raptor XDX is the perfect entry level professional machine at a home user price.
Features
The NEW Raptor XDX combines the best features of the commercial grade Fastrak into the body of a Raptor, giving you the best of both worlds at a price that won't break the bank. With a deep 5" cutting deck, commercial grade spindles, and big commercial Hydrogear 3100 hydrostatic drives, this machine is just as much at home on the trailer of the landscape contractor as it is in the astute home owners garage.
Features Technology
- Commercial grade 10ga. welded steel deck w' leading edge deck reinforcement w' Commercial duty sealed deck spindles.
- Fabricated one piece chassis. Not bolt together! Toughest frame, front forks, and deck in class.
- Reliable industry leading Kawasaki FR Series V-Twin FR691V engine.
- SmoothTrak™ steering with a patented automatic park brake system.
- Premium Twin Hydro Gear ZT3100 integrated serviceable commercial duty hydro's.
- Superior Bolstered extra High-Back seat with armrests and built in lumbar support.
- Hustler Exclusive 22" BigBite™ drive tyres and 13" caster tyres.
- 12.5 km p/h forward ground speed.
- Beautiful quality of cut. Your lawn will be the envy of the neighbourhood.
- Flip up floor pan and removeable seat pan plus Tool-less removable pulley covers for easy maintenance.
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW HUSTLER PRODUCT.
Peace of Mind:
| Warranty Unit | 3 year - 400 hour domestic. |
|---|
Commercial Warranty - 3 Year - 400 Hour Commercial
Specifications:
- Domestic Warranty - 3 Year - 300 Hour Domestic
- Commercial Warranty - 3 Year - 300 Hour Commercial
- Engine (cc) - 726 cc
- Engine - Kawasaki FR730V
- Horsepower - 24.0hp (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
- Fuel Capacity - 11.4 L
- Blade Length - 52cm x 3 Blades
- Dry Weight - 323 kg
- Fuel - Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
- Drive System - Dual hydrostatic. Commercial-duty Hydro-Gear ZT3100
- Ground Speed - Forward - Infinitely variable 0-12.5 km/h
- Ground Speed - Reverse - 0- 8 km/h
- Brakes - In Service: Hydrostatic dynamic braking. Parking: Internal transmission mechanical brake. When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres - 13 x 6.5, smooth tread
- Tyres - Drive - Exclusive 22 x 11 - 10 BigBite™ tyre
- Seat - Superior Bolstered extra High-Back seat with armrests and built in lumbar support.
- Hour Meter - Standard
- ROPS - **No ROPS**
- Seat Suspension - Spring suspension
- Height - 111cm
- Width - 158 cm (with discharge chute raised)
- Width (tyre-to-tyre) - 123 cm
- Deck System - Side-Discharge: 60" cut. Free-floating deck using three blades with centre blade to the front. Deck is suspended at the corners. Includes 3 deck-mounted rollers to improve flotation in rolling and uneven terrain.
- Cutting Widths - 60” (1524 mm) cut side discharge
- Deck Lift - Foot-operated deck height adjustment in 6 mm increments from 38.1 mm to 114.3 mm.
- Deck Construction - 10 ga, .135” (3.4 mm) welded steel with 11 ga, .120" (3.0 mm) doubler welded onto spindle mount areas. Solid 11ga. steel bars reinforce impact areas on trim edges. Commercial-style box-section reinforced front edge.
- Cutting Height(s) - Magnetic Pin for setting cut height
- Blade(s) - (3) Heavy-duty, heat treated, blades. 16.50" x 2.50" x .20"
- Blade Tip Speed - 18,400 fpm
- Discharge Chute - High density, rubberised
- Transmission - Hydro-Gear ZT3100
- Kit - Mulch - Not Standard - Available Option
- Grass Catcher - Not Standard - Accessory Available
- Length - 181cm
- Construction: Mainframe is 3.25" x 1.5" x .120" (8.3 cm x 3.8 cm x .34 cm) channel. Drive motors mounted to .120" (.45 cm) welded steel. Front caster wheels mounted with commercial duty greaseable roller bearings on each wheel. Front caster forks are 1/4" (6.35 mm)steel.
- ROPS: No
- Seat Suspension: Seat suspension springs are standard.
- Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Integrated parking brakes
- Cup Holder: Cup holder moulded into the left side fender. Accommodates nearly any cup size.
- Height: 39" (990 mm)
- Overall Length: 73" (1854.2 mm)
- Width: 44.42" (1128 mm) w/discharge chute up.
- Width (tyre-to-tyre): 41" (1040 mm)
- Deck System: Side-Discharge: 42" cut. (2) Blades, Four-point deck lift. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
- Governor: Mechanical
- Drive System: Dual hydrostatic. Hydro-Gear ZT2100 integrated hydrostatic zero turn transaxles.
- Hydrostatic Drive: V-belt drive from engine crankshaft
- Ground Speed - Forward: Infinitely variable 0-10.5 kph (0-6.5 mph)
- Ground Speed - Reverse: 0-6.4 kph (0-4 mph)
- Steering: SmoothTrak twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls.
- Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
- Brakes: In Service: Hydrostatic dynamic braking. Parking: When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres: 11 x 4.0 - 5, rib tread
- Tyres - Drive: 18 x 8.5 - 8, turf tread
- Cutting Widths: 42" cut Side Discharge
- Deck Lift: Foot-operated deck height adjustment.
- Deck Construction: 11 ga, .120" (3.0 mm) welded steel fabricated deck with 14 ga, .075" (1.9 mm)
- Cutting Height(s): Height adjustment in .25" increments from 1.5" to 4.5" (3.81 cm to 11.43 cm, .6 cm increments)
- Blade(s): (2) Heavy-duty blades. 20.50" x 2.25" x .188"
- Blade Tip Speed: 16,700 fpm
- Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life.
- Spindles: Die cast aluminium housing, 3/4" diameter high carbon steel shafts and sealed bearings with triple protection seals.
- Discharge Chute: High density, rubberised.
- Weight: 229 kg (505 lbs)
- Seat: Moulded-vinyl seat. Seat suspension springs are standard. reinforced spindle mount areas. Solid 3/4" x 1/4" (19.05 mm x 6.35 mm) steel bars reinforce impact areas on trim edges. Steel deck housing is 4.1" (104.14 mm) deep to provide room for high-capacity mowing.
Optional accessories available for purchase separately include: Mulch Kit: 121476 - Blades included when purchasing this kit. Recycles clippings under deck allowing clippings to be cut and recut, then discharged down into the grass. Reduces handling of clippings, improves appearance, and recycles nutrients back to the soil. Grass Catcher: TBA - 2 bag catcher [powered] Replacement Blades:- Low Lift: HP793794 Low Lift (Fusion): HP600901 Medium Lift: HP603992 (Production) High Lift: HP794685 Catching: HP793935 Wavy Mulch: HP794214 Gator: HP794230
