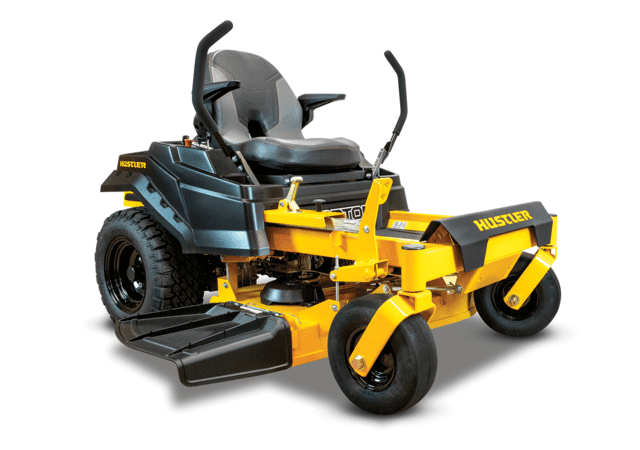

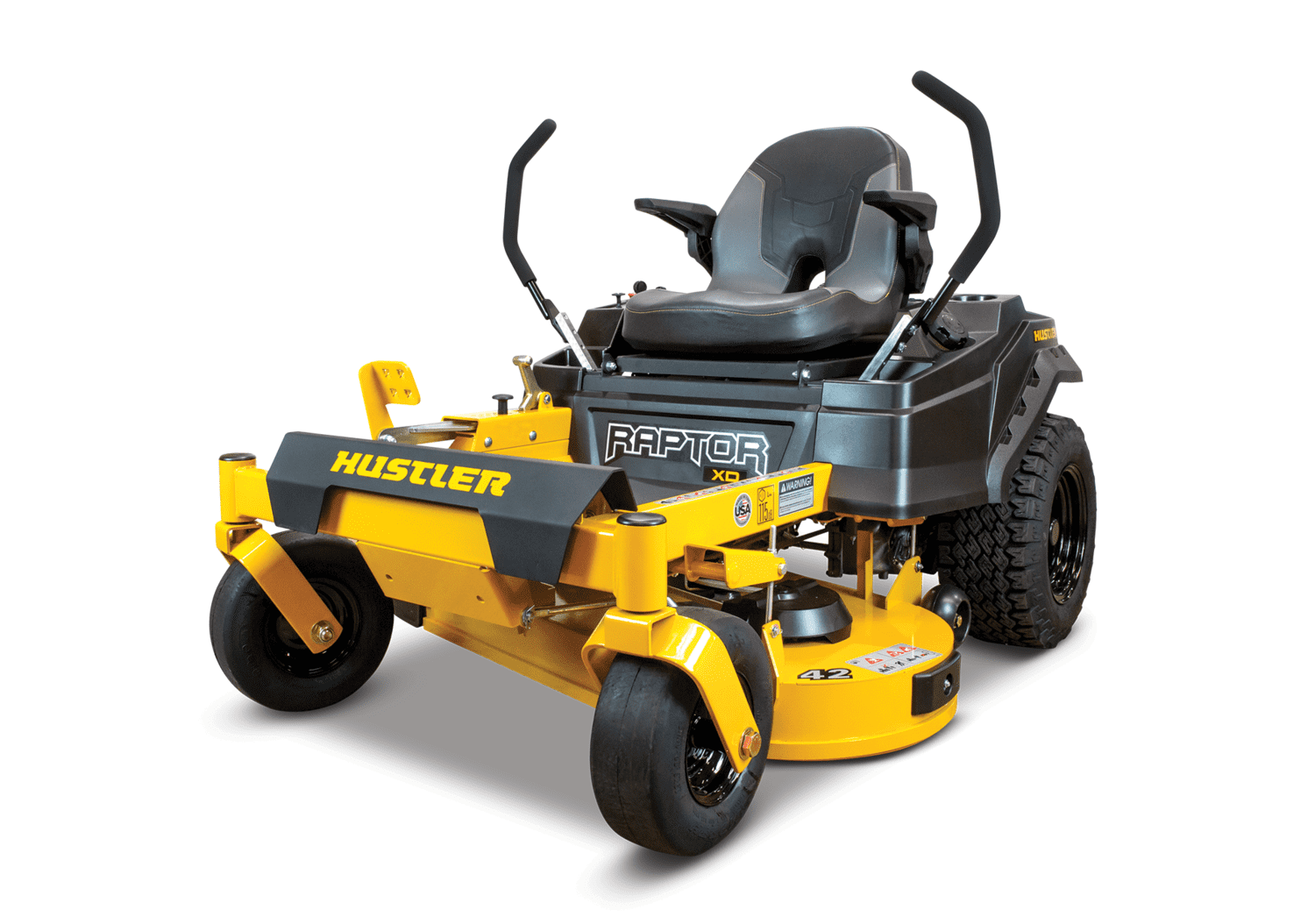

Hustler Raptor XD 54" (Model 939751) $11999.00
For the Savvy Rural/Residential User wanting ease of use and shorter mowing times. The new Raptor XD is a low profile, heavy-duty premium residential zero-turn with a deep fabricated steel deck, fully welded tubular steel frame, tough front end with large 13" caster and 20" rear Big Bite tyres, and exceptional control and handling.
Features
The New Raptor® XD is a low profile, heavy-duty premium residential zero-turn mower. With an all new wider stance and single fully welded frame, this machine is built like a tank, but drives like a sports car. Featuring all the exclusives that you can only find on a Hustler machine, the Raptor® XD is a hard act to beat!
Features Technology
- Fully fabricated steel deck
- Hustler exclusive 20” BigBite™ drive tyres and 13" front castors
- Premium Hydro-Gear 2800 transmission for reliable and dependable operation
- One piece welded tubular frame, not bolt together like inferior machines
- Smooth Trak™ steering with automatic park brake system
- Premium bolstered high-back seat with armrests and built-in lumbar support
- Fast, professional zero turn productivity
- Premium Kawasaki commercial grade engine
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW HUSTLER PRODUCT.
Peace of Mind:
| Warranty Unit | 3 year - 300 hour domestic. |
|---|
Commercial Warranty - 3 Year - 300 Hour Commercial
Specifications:
- Domestic Warranty - 3 Year - 300 Hour Domestic
- Commercial Warranty - 3 Year - 300 Hour Commercial
- Engine (cc) - 726 cc
- Engine - Kawasaki FR691V
- Horsepower - 23 hp (17.2kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
- Fuel Capacity - 11.36 L
- Blade Length - 47cm x 3 Blades
- Dry Weight - 296kg
- Fuel - Unleaded (see engine manufacturers specifications)
- Drive System - Dual hydrostatic. Hydro-Gear ZT2800 integrated hydrostatic zero-turn transaxles
- Ground Speed - Forward - Infinitely variable 0-12.1km/h
- Ground Speed - Reverse - 0-6.4 km/h
- Brakes - Hydrostatic dynamic braking. Parking: Patented automatic park brake system.
- Caster Tyres - 13 x 6.5, smooth tread
- Tyres - Drive - Exclusive 20 x 12 - 12 BigBite™ tyre
- Seat - Premium bolstered high-back seat with armrests and built-in lumbar support
- Hour Meter - Standard
- ROPS - **No ROPS**
- Seat Suspension - Seat suspension springs are standard
- Height - 111cm
- Width - 149cm (with discharge chute raised)
- Width (tyre-to-tyre) - 123cm
- Deck System - Side-Discharge: 54" cut. 3 Blades, deck is suspended at two points at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
- Cutting Widths - 54" (137cm)
- Deck Lift - Foot Operated 4 point deck lift system
- Deck Construction - 11 ga, 3.0 mm welded steel with 7 ga, 4.5 mm support plate double welded onto spindle mount areas. Solid 9.5 mm x 25.4 mm steel bars reinforce impact areas on trim edges. Steel deck housing is 114.3 mm deep to provide room for high-capacity mowing.
- Cutting Height(s) - 1.5" (3.8cm) to 4.5" (11.5cm) in 1/4" (6mm) increments
- Blade(s) - (3) Heavy-duty, heat treated blades. 18.5" X 2.50 X .20"
- Blade Tip Speed - 18,800 fpm
- Discharge Chute - High density, rubberised
- Transmission - Hydro-Gear ZT2800
- Kit - Mulch - Not Standard - Available Option
- Grass Catcher - Not Standard - Accessory Available
- Length - 181cm
- Construction: Mainframe is 3.25" x 1.5" x .120" (8.3 cm x 3.8 cm x .34 cm) channel. Drive motors mounted to .120" (.45 cm) welded steel. Front caster wheels mounted with commercial duty greaseable roller bearings on each wheel. Front caster forks are 1/4" (6.35 mm)steel.
- ROPS: No
- Seat Suspension: Seat suspension springs are standard.
- Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Integrated parking brakes
- Cup Holder: Cup holder moulded into the left side fender. Accommodates nearly any cup size.
- Height: 39" (990 mm)
- Overall Length: 73" (1854.2 mm)
- Width: 44.42" (1128 mm) w/discharge chute up.
- Width (tyre-to-tyre): 41" (1040 mm)
- Deck System: Side-Discharge: 42" cut. (2) Blades, Four-point deck lift. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
- Governor: Mechanical
- Drive System: Dual hydrostatic. Hydro-Gear ZT2100 integrated hydrostatic zero turn transaxles.
- Hydrostatic Drive: V-belt drive from engine crankshaft
- Ground Speed - Forward: Infinitely variable 0-10.5 kph (0-6.5 mph)
- Ground Speed - Reverse: 0-6.4 kph (0-4 mph)
- Steering: SmoothTrak twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls.
- Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
- Brakes: In Service: Hydrostatic dynamic braking. Parking: When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres: 11 x 4.0 - 5, rib tread
- Tyres - Drive: 18 x 8.5 - 8, turf tread
- Cutting Widths: 42" cut Side Discharge
- Deck Lift: Foot-operated deck height adjustment.
- Deck Construction: 11 ga, .120" (3.0 mm) welded steel fabricated deck with 14 ga, .075" (1.9 mm)
- Cutting Height(s): Height adjustment in .25" increments from 1.5" to 4.5" (3.81 cm to 11.43 cm, .6 cm increments)
- Blade(s): (2) Heavy-duty blades. 20.50" x 2.25" x .188"
- Blade Tip Speed: 16,700 fpm
- Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life.
- Spindles: Die cast aluminium housing, 3/4" diameter high carbon steel shafts and sealed bearings with triple protection seals.
- Discharge Chute: High density, rubberised.
- Weight: 229 kg (505 lbs)
- Seat: Moulded-vinyl seat. Seat suspension springs are standard. reinforced spindle mount areas. Solid 3/4" x 1/4" (19.05 mm x 6.35 mm) steel bars reinforce impact areas on trim edges. Steel deck housing is 4.1" (104.14 mm) deep to provide room for high-capacity mowing.
Optional accessories available for purchase separately include: Mulch Kit: 126537 - Blades included when purchasing this kit. Recycles clippings under deck allowing clippings to be cut and recut, then discharged down into the grass. Reduces handling of clippings, improves appearance, and recycles nutrients back to the soil. Grass Catcher: 940817 - 2 bag catcher [non-powered] Replacement Blades:- Low Lift: HP793794 Low Lift (Fusion): HP600901 Medium Lift: HP603992 (Production) High Lift: HP794685 Catching: HP793935 Wavy Mulch: HP794214 Gator: HP794230
