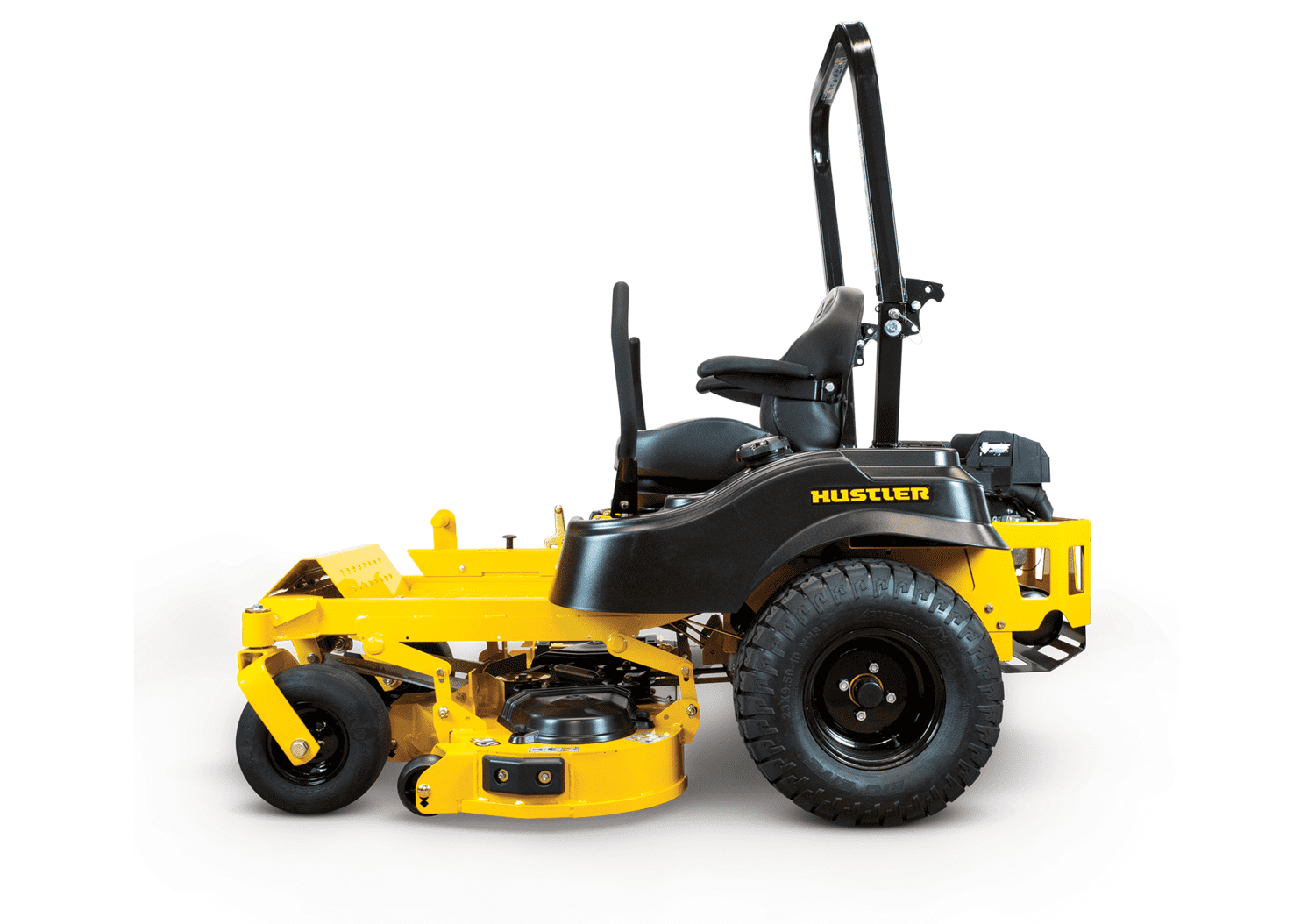

Hustler Fastrak 48" (Model 941724) $16799.00
For the astute Residential User or Land Owner as well as the Small Commercial Operator.The Fastrak has all the strength, durability and power needed for the pro‑sumer or commercial operator. Configured with best in class features, the Fastrak is one serious mower! The FasTrak has all the strength, durability and power needed for the pro‑sumer or commercial operator. As proof, we offer a remarkable 4 year limited residential and commercial warranty plus limited lifetime warranties on the frame and the leading edge of the deck. That's a serious mower!
Features
We designed the FasTrak with the homeowner in mind. The zero-radius SmoothTrak steering is easy to use and will edge your flower bed with the finesse of a gardener. Its power makes quick work of the most expansive lawns. The frame is forged of heavy-duty steel. Once you drive a FasTrak, mowing will never be the same. But for the professional, Hustler FasTrak has all the strength, durability and power needed for commercial use. As proof, we offer a remarkable 4-year limited residential warranty plus limited lifetime warranties on the frame and leading edge of the deck. That's a serious mower.
Features Technology
- Commercial grade 10ga. welded steel deck w' leading edge deck reinforcement w' Commercial duty sealed deck spindles.
- Fabricated one piece chassis. Not bolt together! Toughest frame, front forks, and deck in class.
- Kawasaki commercial grade FT Series V-Twin FT691V engine with Vortical™ Air- Filtration system
- SmoothTrak™ steering with a patented automatic park brake system.
- Premium Twin Hydro Gear ZT3200 integrated serviceable commercial duty hydro's.
- Superior Highback seat with suspension and EVC cushion to take pressure off your tailbone.
- Bigger Drive Tyres than previous model - 23" BigBite™ drive tyres and 13" caster tyres.
- 12.9 km p/h forward ground speed.
- Beautiful quality of cut. Your lawn will be the envy of the neighbourhood.
- Flip up floor pan and removeable seat pan plus Tool-less removable pulley covers for easy maintenance.
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW HUSTLER PRODUCT.
Peace of Mind:
| Warranty | 4 year domestic 750 hour limit. |
|---|---|
| Warranty | 4 year Commercial 750 hour limit |
Limited Life Time Warranty Frame & Leading Edge of the Deck
Specifications:
- Domestic Warranty 4 Year or 750 hour Domestic Warranty
- Commercial Warranty 4 Year or 750 hour Commercial Warranty
- Engine (cc) 726 cc
- Engine Kawasaki FT691V
- Horsepower 22.0hp (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
- Fuel Capacity 18.9 L
- Blade Length 42cm x 3 Blades
- Dry Weight 379 kg
- Fuel Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
- Drive System Dual hydrostatic. Commercial-duty Hydro-Gear ZT3200
- Ground Speed - Forward Infinitely variable 0-12.9 km p/h
- Ground Speed - Reverse 0-8 kph km p/h
- Brakes In Service: Hydrostatic dynamic braking. Parking: Internal transmission mechanical brake. When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres 13 x 5.0 - 6, smooth tread
- Tyres - Drive Exclusive 23 x 9.5 - 10 BigBite™ tyre
- Seat - High-back suspension seat w' armrests and tail bone cushioning system
- Hour - Meter Standard
- ROPS - ROPS Fitted as Standard
- Seat - Suspension Full mechanical suspension
- Height - 124cm, extending to 175cm with ROPS up
- Width - 125cm (with discharge chute raised)
- Width - (tyre-to-tyre) 119cm
- Deck System - Side-Discharge: 48" cut. Free-floating deck using three blades with centre blade to the front. Deck is suspended at the corners. Includes 3 deck-mounted rollers to improve flotation in rolling and uneven terrain.
- Cutting Widths - 48” (1196 mm) cut side discharge
- Deck Lift - Foot-operated deck height adjustment in 6 mm increments from 38.1 mm to 114.3 mm.
- Deck Construction - 10 ga, .135” (3.4 mm) welded steel with 11 ga, .120" (3.0 mm) doubler welded onto spindle mount areas. Solid 11ga. steel bars reinforce impact areas on trim edges. Commercial-style box-section reinforced front edge.
- Cutting Height(s) Magnetic Pin for setting cut height
- Blade(s) (3) Heavy-duty, heat treated, blades. 16.50" x 2.50" x .20"
- Blade Tip Speed 18,600 fpm
- Discharge Chute High density, rubberised.
- Transmission Hydro-Gear ZT3200, upgraded from previous model Fastrak
- Kit - Mulch Not Standard - Available Option
- Grass Catcher Not Standard - Accessory Available
- Length 187cm
- PTO Clutch: Electric PTO Clutch
- Drive System: Dual hydrostatic. Commercial-duty Hydro-Gear ZT3100
- Hydrostatic Drive: V-belt drive from engine crankshaft
- Ground Speed - Forward: Infinitely variable 0-12.9 kph (0 - 8 mph)
- Ground Speed - Reverse: 0-8 kph (0-5 mph)
- Steering: SmoothTrak twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls.
- Turning Radius: True zero turning radius .Turns within its own length. Counter-rotating, independent drive wheels
- Brakes: In Service: Hydrostatic dynamic braking.
- Parking: Internal transmission mechanical brake. When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres: 13 x 5.0 - 6, smooth tread
- Tyres - Drive: 22 x 9.5 - 10, turf tread
- Weight: 378 kg (835 lbs)
- Seat: Mid-Back suspension seat
- Construction: Mainframe is 1.5" x 3" x .125" (38 mm x 76 mm x 3.17 mm) rectangular steel tubing. Front caster wheels mounted with heavy duty greaseable ball bearings on each wheel. Front caster forks are 3/8" (9.52 mm) steel.
- ROPS: Standard
- Seat Suspension: Seat-pan suspension springs are standard.
- Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Integrated parking brakes
- Cup Holder: Two cup holders moulded into the left side fuel tank. Accommodates nearly any cup size.
- Height: 44.3" (1125.2 mm)
- Overall Length: 73.6" (1869.4 mm)
- Width: 49.1" (1247 mm) w/discharge chute up.
- Width (tyre-to-tyre): 47" (1193.8 mm)
- Deck System: Side-Discharge: 48" cut. Free-floating deck using three blades with centre blade to the front. Deck is suspended at the corners. Includes 3 deck-mounted rollers to improve flotation in rolling and uneven terrain.
- Cutting Widths: 48" cut Side Discharge
- Deck Lift: Foot-operated deck height adjustment.
- Deck Construction: 10 ga, .135" (3.4 mm) welded steel with 11 ga, .120" (3.0 mm) doubler welded onto spindle mount areas. 11ga. Front bullnose on deck impact areas on trim edges.
- Cutting Height(s): Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in .25" increments from 1.5" to 4.5" (3.81 cm to 11.4 cm, .6 cm increments)
- Blade(s): (3) Heavy-duty, heat treated, blades. 16.50" x 2.50" x .20"
- Blade Tip Speed: 18,600 fpm
- Blade Drive: Single V-belt drive from engine with electric clutch to three spindles. Spring tension idler for extended belt life.
- Spindles: Aluminium casting with 1.0" (25.4 mm) steel shafts and sealed ball bearings.
- Discharge Chute: High density, rubberised.
Optional accessories available for purchase separately include: Mulch Kit 48": 121474 - [Includes wavy mulcher blades]. The versatile Hustler mowing decks can side -discharge or mulch. Recycles clippings under deck allowing clippings to be cut and recut, then discharged down into the grass. Reduces handling of clippings, improves appearance, and recycles nutrients back to the soil. Grass Catcher 48"/ 54" / 60": 933655 - 2 bag catcher [*must order (1) adapter kit below to complete 933655]. Catcher Adapter Kit 48": 121074 - 2 bag catcher adapter. Flex Forks 48": 600213 [2 forks] Light Kit (2015 FasTrak) 48" / 54" / 60": 121482 - Work later with our optional light kit. Steering Lever Extension Kit: 333724 - Steering levers can be adjusted in several ways to make your mowing experience as comfortable as possible. Seat Isolator Kit: 122166 Replacement Blades:- Low Lift: 601123 Low Lift (Fusion): 601014 High Lift: 606252 (Production) High Lift (Fusion): 795757 Wavy Mulch: 796623 Gator: 796631
