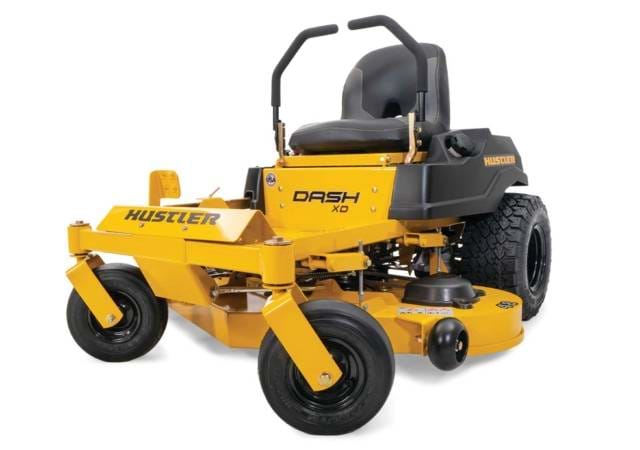

Hustler Dash XD 42" (Model 940759) $8699.00
Built for the discerning small acreage owner, the NEW Dash™ XD has features of much larger commercial machines like fully welded frame, fabricated hi-flow deck and premium Kawasaki power, what other choice is there?!
The NEW Dash™ XD, perfectly designed for the small acreage owner with features that you will only find on expensive commercial grade machines. Hustler has taken it's capabilities in the big lawn space and delivered it in a compact machine that means the small acreage owner no longer needs to compromise on quality and ability.
The NEW Dash™ XD, what other choice is there?!
Features
- 1” x 2” Fully Tubular frame, making it one of the toughest in its class
- Foot operated deck lift system, not hand operated like other brands
- Premium bolstered seat with lumbar support built in
- Easy Fill Fuel System
- Compact size that will fit through most gates, giving easy access to the entire yard
- Hustler exclusive 18” BigBite™ drive tires and 11" front castors
- Premium Kawasaki V-Twin engine
- Smooth Trak™ steering with automatic park brake system
- 4.1” Deep Deck with larger discharge to increase grass cutting capacity and clearing performance
- Engine Guard Standard
Features Technology
- Domestic Warranty - 2 Year - 200 Hour
- Engine (cc) - 603 cc
- Engine - Kawasaki FR541V
- Horsepower - 15 hp @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
- Fuel Capacity - 7.6L
- Blade Length - 52cm x 2 Blades
- Dry Weight - 212kg
- Fuel - Unleaded (see engine manufacturers specifications)
- Drive System - Dual hydrostatic. Hydro-Gear ZT1800 integrated hydrostatic zero-turn transaxles
- Ground Speed - Forward - Infinitely variable 0-9.7 km/h
- Ground Speed - Reverse - 0-4.8 km/h
- Brakes - Hydrostatic dynamic braking. Parking: Patented automatic park brake system.
- Caster Tyres - 11 x 4, smooth tread
- Tyres - Drive - Exclusive 18 x 8.5 - 8 BigBite™ tyre
- Seat - Premium bolstered seat with built-in lumbar support
- Hour Meter - Standard
- ROPS - **No ROPS**
- Seat Suspension - Seat suspension springs are standard
- Height - 102cm
- Width - 110cm (with discharge chute raised)
- Width (tyre-to-tyre) - 104cm
- Deck System - Side-Discharge: 42" cut. 2 Blades, deck is suspended at two points at the rear and two in front.
- Cutting Widths - 42" (107cm)
- Deck Lift - Foot Operated 4 point deck lift system
- Deck Construction - 11 ga, 3.0 mm welded steel with 14 ga, support plate double welded onto spindle mount areas. Solid 9.5 mm x 25.4 mm steel bars reinforce impact areas on trim edges. Steel deck housing is 104 mm deep to provide room for high-capacity mowing.
- Cutting Height(s) - 1.5" (3.8cm) to 4.5" (11.5cm) in 1/2" (12mm) increments
- Blade(s) - 2 x Heavy-duty, heat treated blades 20.5"
- Blade Tip Speed - 17800 fpm
- Discharge Chute - High density, rubberised
- Transmission - Hydro-Gear ZT1800
- Kit - Mulch
- Not Standard - Available Option Grass Catcher
- Not Standard - Accessory Available
- Length - 166 cm
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW HUSTLER PRODUCT.
Peace of Mind:
Warranty: Domestic 2 year - 200 hour
Specifications:
- Engine: Kawasaki FR541V
- Horsepower 15 hp @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
- Type: Air cooled, normally aspirated petrol engine.
- Starter: 12-volt
- Ignition: Electronic
- Charging System: 12-volt (see engine manufacturers specifications)
- Fuel: Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
- Fuel Capacity: 7.6L
- Fuel Filter: Replaceable, automotive-type
- Air Filter: Cartridge air filter
- Cooling: Air cooled. Fly-wheel fan
- Construction: Mainframe is 3.25" x 1.5" x .120" (8.3 cm x 3.8 cm x .34 cm) channel. Drive motors mounted to .120" (.45 cm) welded steel. Front caster wheels mounted with commercial duty greaseable roller bearings on each wheel. Front caster forks are 1/4" (6.35 mm)steel.
- ROPS: No
- Seat Suspension: Seat suspension springs are standard.
- Controls: Hand-operated choke, throttle, ignition switch, electric mower clutch, Integrated parking brakes
- Cup Holder: Cup holder moulded into the left side fender. Accommodates nearly any cup size.
- Height: 39" (990 mm)
- Overall Length: 73" (1854.2 mm)
- Width: 44.42" (1128 mm) w/discharge chute up.
- Width (tyre-to-tyre): 41" (1040 mm)
- Deck System: Side-Discharge: 42" cut. (2) Blades, Four-point deck lift. Includes deck-mounted anti-scalp wheel(s) to improve flotation in rolling and uneven terrain.
- Governor: Mechanical
- Drive System: Dual hydrostatic. Hydro-Gear ZT2100 integrated hydrostatic zero turn transaxles.
- Hydrostatic Drive: V-belt drive from engine crankshaft
- Ground Speed - Forward: Infinitely variable 0-10.5 kph (0-6.5 mph)
- Ground Speed - Reverse: 0-6.4 kph (0-4 mph)
- Steering: SmoothTrak twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, brake, and turns are all controlled with hand-operated controls.
- Turning Radius: True zero turning radius. Turns within its own length. Counter-rotating, independent drive wheels
- Brakes: In Service: Hydrostatic dynamic braking. Parking: When steering levers are placed in neutral position, integral park brakes are automatically engaged
- Caster Tyres: 11 x 4.0 - 5, rib tread
- Tyres - Drive: 18 x 8.5 - 8, turf tread
- Cutting Widths: 42" cut Side Discharge
- Deck Lift: Foot-operated deck height adjustment.
- Deck Construction: 11 ga, .120" (3.0 mm) welded steel fabricated deck with 14 ga, .075" (1.9 mm)
- Cutting Height(s): Height adjustment in .25" increments from 1.5" to 4.5" (3.81 cm to 11.43 cm, .6 cm increments)
- Blade(s): (2) Heavy-duty blades. 20.50" x 2.25" x .188"
- Blade Tip Speed: 16,700 fpm
- Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life.
- Spindles: Die cast aluminium housing, 3/4" diameter high carbon steel shafts and sealed bearings with triple protection seals.
- Discharge Chute: High density, rubberised.
- Weight: 229 kg (505 lbs)
- Seat: Moulded-vinyl seat. Seat suspension springs are standard. reinforced spindle mount areas. Solid 3/4" x 1/4" (19.05 mm x 6.35 mm) steel bars reinforce impact areas on trim edges. Steel deck housing is 4.1" (104.14 mm) deep to provide room for high-capacity mowing.
Optional accessories available for purchase separately include: Mulch Kit: 125031 - Blades included when purchasing this kit. Recycles clippings under deck allowing clippings to be cut and recut, then discharged down into the grass. Reduces handling of clippings, improves appearance, and recycles nutrients back to the soil. Grass Catcher: HA939298 - Catcher Side [non-powered] Extension Arms: 122760 Replacement Blades:- Low Lift: HP793794 Low Lift (Fusion): HP600901 Medium Lift: HP603992 (Production) High Lift: HP794685 Catching: HP793935 Wavy Mulch: HP794214 Gator: HP794230
