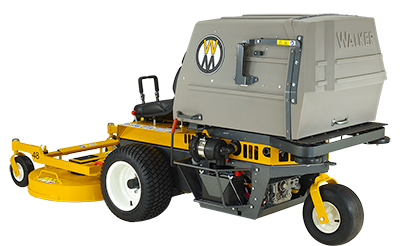

Walker Model S 18Hp 42" Collection Deck $24490.00
Model MS18 + DU42-2
MS18
The MS18 continues to build on the Model S platform with an 18 HP engine and Walker’s patented Grass Handling System with Thru-Shaft PTO. It is faster and more powerful, and with reduced weight, the MS18 is designed to be productive and efficient. Able to run 36 to 56 inch decks, the new MS18 is the perfect choice for residential properties, gated yards, or demanding customers.
24 months interest free.
Features
The Model S is the quintessential Walker Mower. Inspired by the original 1977 prototype, the Model S is simple and easy to operate, and very efficient at mowing residential properties. With Walker’s Grass Handling System™, a patented Thru-Shaft™ PTO blower design, and reduced weight and cost, the Model S is the perfect entry-level mower for experiencing Walker’s signature beautiful cut and zero-turn productivity.
The Model S is perfect for residential lawns. The Model S features Walker’s Grass Handling System™ (GHS) with a patented 12.75 inch Thru-Shaft™ PTO GHS blower and a 7.0 bushel grass catcher. The compact design, coupled with Walker’s precision steering levers and Forward Speed Control, makes getting in and out of tight landscape features and obstacles possible, minimizing hand-held trimming and walk-behind mower time.
The lightweight, balanced design improves steering agility, shortening overall job time. Integrated Hydro-Gear ZT3100 transmissions are durable and provide precise maneuverability and industry-wide service and support. The Model S is engineered for affordability and efficiency. With commercial-grade components and multiple configurable add-ons, the Model S is a serious tool for commercial operators maintaining compact, complex properties.
18hp Vanguard V-Twin Engine
42" GHS Vented Deck
Hydro-Gear ZT-3100 Transmissions
Shaft Drive PTO & Cutter Deck
Superior Catching with Integrated Blower
- Type: Collection
- Power: 18 HP
- Engine: Briggs & Stratton Vanguard
- Ideal Application: Residential Properties, Small Commercial Properties
- Key Attributes: Compact, Agile, Productive
Features Technology
- High capacity, commercial engine air filtration
- Precision steering system
- Forward Speed Control
- Hydro-Gear ZT3100 transmissions
- Tilt-up decks and tilt-open body
- Flexible deck carrier frame
- Grass Handling System™ (GHS)
- 12.75 inch Thru-Shaft™ PTO GHS blower
- Oscillating PowerFil™ chute with Grass-Pak™ full signal
- 7 bushel (8.7 cu. ft.) grass catcher
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW WALKER PRODUCT.
Peace of Mind:
| Warranty |
1 year domestic All parts and Components deemed not to be typical wear items in normal usage |
|---|
Specifications:
ENGINE
Manufacturer: Briggs & Stratton Vanguard
Model: 356447-1338
Displacement: 570 cc (34.8 cu. in.)
Max Power: 18 HP @ 3600 RPM
Max Torque: 29.2 ft-lbs
Cooling System: Air
Fuel: Regular grade unleaded gasoline (87 octane minimum, 10% ethanol maximum)
Fuel Capacity: 4 gal (15.1 liter)
ELECTRICAL
Battery: 12V, 300CCA
Charging System: Flywheel Alternator
Charging Output: 16 Amp DC (Regulated)
TRANSMISSION
Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-7.4 (0-11.9) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve
BLADE DRIVE
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake (stops blades within 5 seconds of disengagement)
GRASS HANDLING
Blower: 12.75 in. Diameter, Three-Blade Paddle Wheel, Integrated Thru-Shaft PTO
Max. Blower RPM: 2900 RPM
Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L
Full Signal: Grass-PakTM full signal alerts operator when catcher box is full
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
DECK
Recommended Cut Width: Collection: 36 to 48 in. (91 to 122 cm), Side Discharge: 36 to 56 in. (91 to 142 cm), Mulch: 36 to 48 in. (91 to 122 cm)
Standard Deck is DC42V-2 Collection Deck
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) in 1/2 in (1 cm) Increments
Deck Suspension: Torsion-Flex Frame with Caster Wheels and Counterweight Springs
TIRES
Drive: 18 x 7.00-8 (pneumatic 4-ply, standard) 18 x 8.5-10 (pneumatic, 4-ply, optional low-profile)
Tailwheel: 13 x 6.50-6 (pneumatic 4-ply)
Deck Caster: 8 x 3.00-4 (Foamed rubber standard, optional pneumatic)
LENGTH
Tractor Only: 65 in (165 cm)
Tractor with C42 deck: 89.25 in (226.5 cm)
Tractor with C48 deck: 94 in (239 cm)
Tractor with deck tilted: 77 in (196 cm)
Tractor wheel base: 42.25 in (107 cm)
WIDTH
Tractor Only (Outside Tire): 38.5 in (98 cm) NOT narrow drive tires
Tractor with C42 deck: 43.25 in (110 cm)
Tractor with C48 deck: 49 in (125 cm)
HEIGHT
Tractor: 46.5 in (118 cm)
WEIGHT
Tractor Only: 636 lbs (289 kg)
Tractor with C42 deck: 827 lbs (375 kg)
Tractor with C48 deck: 859 lbs (390 kg)
