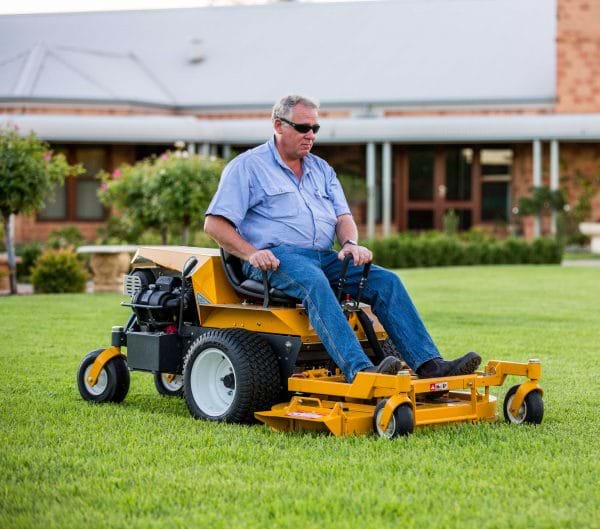

Walker Model MB 27Hp 42" 2 in 1 Deck $23990.00
Model MB27i + DS42B-2
The MB27i is a simple, clean design using many of the same principles as the Walker original. At the heart of the MB27i is a Kohler Command engine and a simplified drive train. Decks are easily installed and changed using the quick disconnect PTO drive shaft..
Features
Like no other mower in the mid-size, zero-turn class, the Model B is productive and compact. The Model B possesses the distinct Walker characteristics of being agile, versatile, and easily maintainable while delivering the Walker beautiful cut. The Model B is light on the turf, which not only protects against rutting and other property damage, but also improves efficiency by reducing lost motion and giving quick maneuverability. With a low center of gravity and balanced design, the Model B is agile and demonstrates impressive hillside performance, allowing operators to mow more places with a single machine.
STANDARD FEATURES
- High capacity, commercial engine air filtration
- Precision steering system
- Forward Speed Control
- Hydro-Gear ZT3100 transmissions
- Flexible deck carrier frame
- Tilt-up decks and tilt-open body
Features Technology
- Engine: Kohler Command Pro, ECH730, EFI
- Displacement: 747 cc (45.6 cu in)
- Max Power: 27 hp @ 3600 rpm
- Max Torque: 36.1 ft lbs
- Fuel Capacity: 4.7 gal (17.8 litre)
- Cooling System: Air
- Weight: 270kg (Tractor Only), 364kg (Tractor with 42" Deck)
- Dimensions: 100cm (39.5 in) H x 124cm (49 in) W x 231cm (90.75 in) L
This machine is fitted with the Australian/New Zealand developed Mulch/Side Discharge Deck.
When fitted with the optional Recut Blade set, this deck really performs.
Performance/Usability:
YOUR MACHINE WILL BE FULLY ASSEMBLED AND PRE DELIVERED BEFORE PICK UP ENSURING YOU GET THE MOST FROM YOUR NEW WALKER PRODUCT.
Peace of Mind:
| Warranty |
1 year domestic All parts and Components deemed not to be typical wear items in normal usage Kohler Administers their own engine warranty |
|---|
Specifications:
ENGINE
Manufacturer: Kohler
Model: Kohler Command Pro, ECH730, EFI
Displacement: 674 cc (41.1 cu. in.)
Max Power: 22.5 HP @ 3600 RPM
Governed RPM: 3600
Max Torque: 36.8 ft-lbs
Cooling System: Air
Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)
Fuel Capacity: 4.7 gal (17.8 liter)
ELECTRICAL
Battery: 12V, 300CCA
Charging System: Flywheel Alternator
Charging Output: 15 Amp DC (Regulated)
TRANSMISSION
Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-8 MPH (0-13 km/h) Infinitely Variable
Neutral: Transaxle Release by Manual Dump Valve
BLADE DRIVE
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]
DECK
Recommended Cut Width: Side Discharge: 36 to 74 in. (91 or 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)
Standard Deck is DS48B-2 Mulch / Side Discharge 48”
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
TIRES
Drive: 18 x 8.50-10 (Pneumatic 4-Ply, Low-Profile)
Tailwheel: 11 x 4.00-5 (Pneumatic)
Deck Caster: 8 x 3.00-4 (Foamed rubber standard, optional pneumatic)
LENGTH
Tractor Only: 63 in (160 cm)
Tractor with M48 deck: 90.75 in (230 cm)
Tractor with deck tilted: 72 in (183 cm)
Tractor wheel base: 40 in (102 cm)
WIDTH
Tractor Only (Outside Tire): 38.5 in (98 cm)
Tractor with M48 deck: 49 in (125 cm)
HEIGHT
Tractor: 39.5 in (100 cm)
WEIGHT
Tractor Only: 583 lbs (264 kg)
Tractor with M48 deck: 789 lbs (358 kg)
