MS 661 C-M

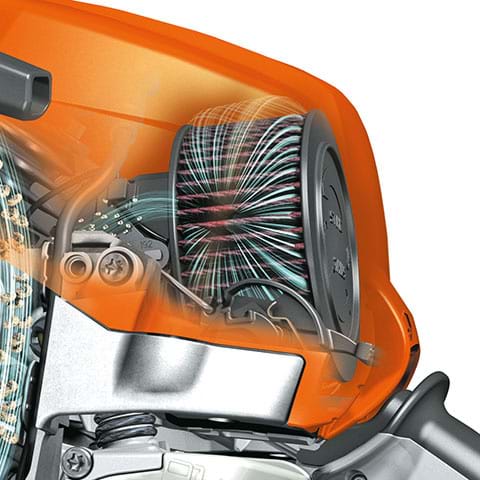

• HD2-Filter

  This air filter keeps even the finest dust away from the engine, ensuring a particularly long service life. Thanks to special material, the filter can be washed clean, for example with STIHL Varioclean and warm water.

• Decompression valve

  The decompression valve is part of the easy start-system. The valve should be pressed before starting in order to reduce the compression pressure when starting, as well as the effort needed to pull the starter rope. The decompression valve is semi-automatic, meaning that it must be pressed manually before starting, but then closes automatically.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

• STIHL M-Tronic (M)

  For a cold start, the STIHL M-Tronic only needs one start position on the combi-lever. After starting, you can immediately power up to full speed. The amount of fuel required is precisely calculated by the system and supplied as needed. Otherwise, start in position I as usual.

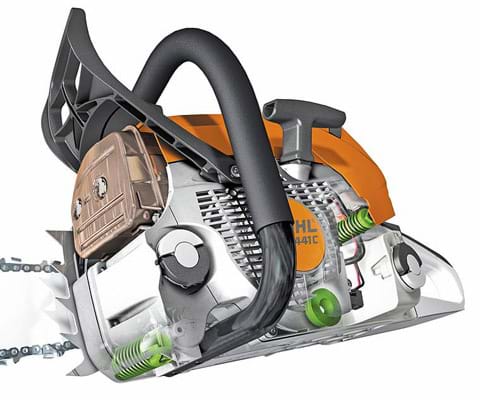

• STIHL anti-vibration system

  Intense vibration at the handles of power tools can lead to longer-term effects of blood vessels in the hands and arms. STIHL have therefore developed an effective anti-vibration system where by the oscillations from the machines engine are dampened which significantly reduces vibrations at the handles.

• Compensator

  This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs.

• Captive bar nuts

  Bar nuts held captive in the sprocket cover will not get lost when changing over the cutting attachment.

• Controlled-delivery oil pump

  The exact chain oil output can be adjusted maunally for varying conditions, allowing for a reduction of up to 50%.

• QuickStop Chain Brake

  The QuickStop chain brake is a protective mechanism when handling chainsaws. The chain brake is operated via the front hand guard and brings the saw chain to a standstill in fractions of a second. If the kickback is strong enough, the Quick Stop Chain Brake automatically releases.

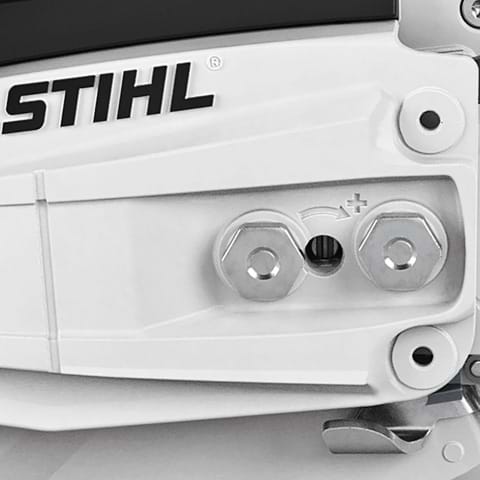

• Side-mounted chain tensioning

  The tensioning screw is located on the side of the chain saw through the sprocket cover. Chain side tensioning allows the saw chain to be retensioned effortlessly, avoiding any contact with the sharp chain.

• STIHL Ematic-System

  The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption up to 50%.

• STIHL ElastoStart

  STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the users joints and muscles through a spring or rubber element in the starter handle.

• Tool free fuel caps

  Special caps on the fuel and oil tanks are designed for easy opening and locking without the need for tools.
